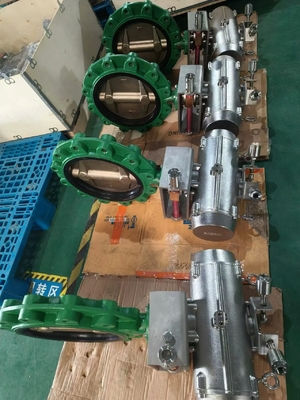

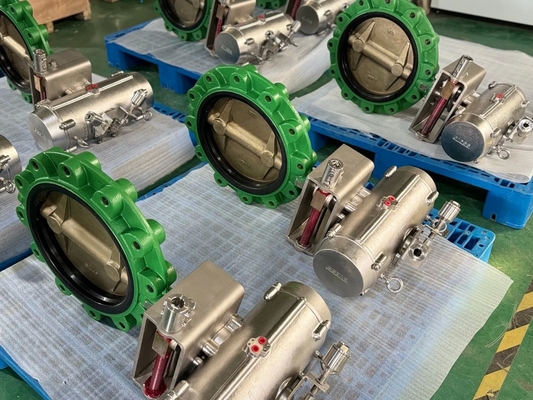

Pneumatic Lug Butterfly Valve Aluminum Bronze EPDM Seal 2-24 Inch
Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
| Minimum Order Quantity: | 1 |
|---|
|
Λεπτομερής ενημέρωση |
|||
| Connection Form: | Lug Support | Structure: | Centre Sealing |
|---|---|---|---|
| Seal Form: | EPDM | Valve Stem: | Normal |
| Work Pressure: | Mid-Pressure (2.5mpa< Pn <6.4mpa) | Working Temperature: | Normal Temperature (-40°C |
| Seal Surface Material: | Soft Sealed | Valve Body: | Casting |
| Valve Size: | 1-1/2"~40" (DN15~DN1000) | Body Material: | FC, FCD, WCB, CF8, CF8M |
| Disc Material: | FCD, WCB, CF8, CF8M, CF3M | Seat Material: | EPDM, NBR etc |
| Rating: | PN10, PN16, ANSI: 150#, 300# | Connection: | Wafer, Lug, Flange |
| Specification: | 2 inch-24 inch | ||
| Επισημαίνω: | Pneumatic butterfly valve aluminum bronze,EPDM seal butterfly valve 2-24 inch,Pneumatic lug butterfly valve with EPDM |
||
Περιγραφή προϊόντων
Marine Lug Butterfly Valve Made From Aluminum Bronze with SS Actuator Remote Valve Operation
Product Description
VS series pneumatic actuated butterfly valve designed for industrial applications with remote operation capability.
Key Features
- Driving: Pneumatic Actuator
- Valve Type: Center line-type butterfly valve
- Valve Size Range: 1-1/2"~40" (DN15~DN1000)
- Multiple material options for body and disc
- Available with EPDM, NBR and other seat materials
- Various connection types: Wafer, Lug, Flange
Technical Specifications
| Attribute | Value |
|---|---|
| Connection Form | Lug Support |
| Structure | Centre Sealing |
| Seal Form | EPDM |
| Valve Stem | Normal |
| Work Pressure | Mid-Pressure (2.5mpa < Pn <6.4mpa) |
| Working Temperature | Normal Temperature (-40°C < T < 120°C) |
| Material of Seal Surface | Soft Sealed |
| Valve Body | Casting |
| Application | Industrial Usage, Water Industrial Usage |
| Transport Package | Plywood Case |
| Specification | 2 inch-24 inch |
| Trademark | VESON or Customer's |
| Origin | China |
| HS Code | 84123900 |
| Production Capacity | 50000PC / Y |
Material Options
Body Material: FC, FCD, WCB, CF8, CF8M
Disc Material: FCD, WCB, CF8, CF8M, CF3M
Seat Material: EPDM, NBR etc
Rating: PN10, PN16, ANSI: 150#, 300#
