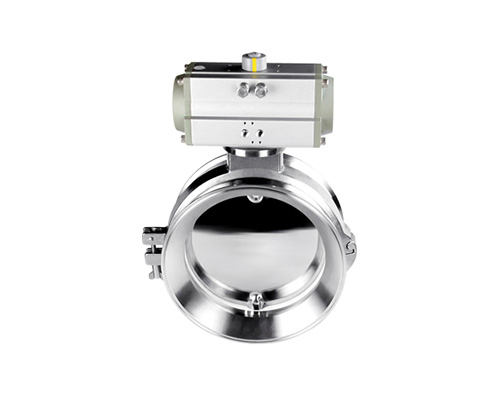

Horizontal Pneumatic Butterfly Valve 1-10 Inch Wafer Type
Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
| Minimum Order Quantity: | 1 |
|---|
|
Λεπτομερής ενημέρωση |
|||
| Model NO.: | VS-160SR08-FO | Connection Form: | Wafer |
|---|---|---|---|
| Structure: | Centre Sealing | Seal Form: | Auto Sealed |
| Valve Stem: | Orbit | Valve Body: | Casting |
| Size Range: | DN10-DN300, 1/2 -12" | Temperature Rating: | 130ºC |
| Pressure Rating: | 10bar | Material: | ASTM T304/T316L, 1.4301/1.4404 |
| Connection Types: | flange, Weld, Clamp, Thread | Operation Standard: | DIN SMS RJT 3A ISO IDF |
| Pneumatic Operation: | Single action, Double action | Production Capacity: | 50000PC / Y |
| Actuation Type: | Pneumatic | ||
| Επισημαίνω: | Horizontal pneumatic butterfly valve,Wafer type butterfly valve 1-10 inch,Pneumatic butterfly valve with warranty |
||
Περιγραφή προϊόντων
Air Actuated Sanitary Butterfly Valve with Horizontal Actuator, Nc/No/AA Types
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | VS-160SR08-FO |
| Connection Form | Wafer |
| Structure | Centre Sealing |
| Seal Form | Auto Sealed |
| Valve Stem | Orbit |
| Valve Body | Casting |
| Application | Industrial Usage |
| Transport Package | Plywood |
| Specification | 1 inch-10 inch |
| Trademark | VESON or Customer's |
| Origin | China |
| HS Code | 8481804090 |
| Production Capacity | 50000PC / Y |
Applications
Horizontal Pneumatic Butterfly Valve suitable for both manual and automatic operation in industrial applications handling fluid products, including food processing, pharmaceutical, and chemical industries.
Technical Specifications
Size: DN10-DN300, 1/2 -12"
Temperature: 130ºC
Pressure: 10bar
Material: ASTM T304/T316L, 1.4301/1.4404
Connection: Flange, Weld, Clamp, Thread, etc.
Operation standard: DIN SMS RJT 3A ISO IDF
Pneumatic Operation: Single action, Double action
Product Features
| Feature | Description |
|---|---|
| Function | Regulate or shut off the flow of fluids in horizontal pipelines |
| Butterfly Valve Type | Utilizes a rotating disc or plate to control the flow |

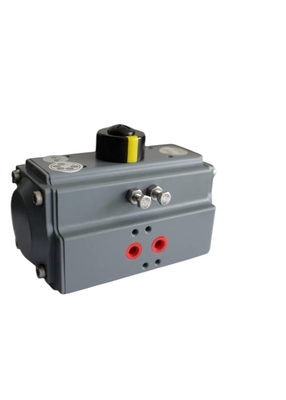

| Actuation | Equipped with pneumatic actuators for automated operation using compressed air or gas |
| Design | Designed for horizontal installation with a compact and low-profile body |
| Sealing | Resilient seals ensure a tight seal when the valve is closed, preventing leakage and backflow |
| Flow Control | Valve's disc rotation allows for precise flow control and throttling capabilities |
| Control Signal | Pneumatic actuators receive control signals for position control from a centralized system or operator |
| Advantages | Easy installation, reliable sealing, precise control, and remote operation |
| Maintenance | Generally require minimal maintenance, but regular inspection and servicing are recommended |
